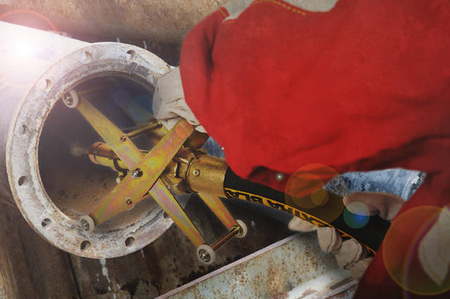

- Internal pipe cleaning tool PBT-1 for pipes 3" (75mm) - 12" (300mm) ID
Internal pipe cleaning tool PBT-1 for pipes 3" (75mm) - 12" (300mm) ID
- Adjustable centering carriage for consistent blast pattern
- Use with standard blast machine
The PBT-1 pipe cleaning tool is an ideal companion to clean blast pipes from 2" (50mm) to 12" (300mm) inner diameter.
The PBT-1 consists of a tungsten-carbide nozzle 12,5mm in a venturi form with a tungsten-carbide circular deflection tip, which blasts abrasive media in a continuous circle pattern.
The tungsten carbide materials ensure low wear and a long service life.
Centering collars and carriage allow fitting the PBT-1 to any pipe with an inner diameter between 3" (75mm) and 12" (300mm).
With the centering collars PBT-1 can be used in the 3" (75mm) to 5" (125mm) I.D. pipe range.
With centering carriage PBT-1 is adjustable to handle all diameters between 5" (125mm) and 12" (300mm) I.D.
With the standard 12.5mm PBT-1 nozzle a compressor which can supply ca. 6.5 m³/min at a pressure of 7 bar at the nozzle is required.
Weight: 4kg in box
