Injector blast-cleaning cabinet 1500L
- Suction cabinet 1500L, working chamber: width/height/depth 1.5m x1.2m x 1m
- Access to the insides of the cabinet from both sides,
- Top lighting – two LED lamps with 2x50W power,
- The inside of the chamber laid with reinforced rubber with a divider,
- The door frame is equipped with a washer around the edges to ensure dust-free work,
- A professional GX injector pistol with a nozzle made from tungsten carbide,
- A comfortable control over how the blaster works with the use of a pneumatic control foot valve,
- Air-tight gloves with a rubber layer,
- 2 mm and 3 mm steel structure which will allow for long operations for many years.
The set includes:
- blasting cabin 1500 l,
- injector valve

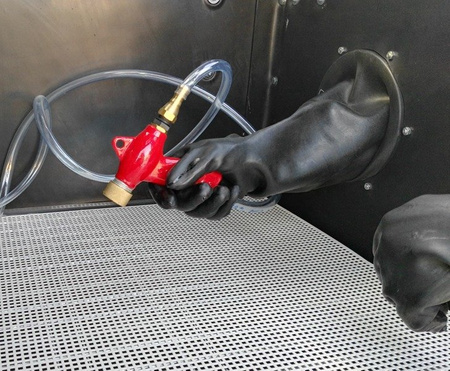

- GX injector gun with a tungsten carbide nozzle,
- control panel - foot control valve,

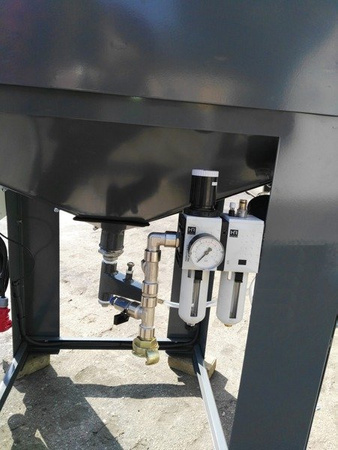

- Pressure reducing valve.
Additional equipment on request:
- stainless grating,
- driveway table
- dust extractor LARK OP-9
Dimensions of the cabin:
Width: 1.5 m
Depth: 1.2 m
Height: 2 m
Working chamber size:
Width: 1,5 m
Depth: 1,2 m
Height: 1 m
Width: 1,1 m
Height: 0,9 m
Width: 0,7 m
Height: 0,3 m
Frame and base of the deduster made of a 2mm and 3mm sheet metal,
Motor power of the deduster fan 2.2 kW,
Efficiency of the dust extractor fan 2.8 m³ / min,
Automatic filter cleaning system,
Cartridge filter with a filter surface of 7.8 m2.
The sandblasting set meets all legal requirements.
All necessary documents are enclosed with the set: instructions for use, guarantee.
Our specialists are happy to answer any questions associated with this machine.
